Specification
Voltage | DC 12V-48V AC 12V-380V 50/60Hz |
Power Expend | DC 1.0W AC1.0VA |
Contact Output | 2Z 5A220VAC 4Z 3A220VAC |
Insulation Resistance | DC500V 100MΩ |
Dielectric Strength | BCC1500VAC BOC1000VAC |
Operating Temperature | -10℃~50℃ |
Huminity | 35%~85% |
Life | Mech:10^7 Elec:10^3 |
Weight | ≈50g |
Time Range
Rated Time | Time Range | Rated Time | Time Range |
0.5S | 0.05S~0.5S | 0.5m | 0.05~0.5m |
1S | 0.1S~1S | 1m | 0.1m~1m |
5S | 0.5S~5S | 5m | 0.5m~5m |
10S | 0.5S~10S | 10m | 0.5m~10m |
30S | 1.0S~30S | 30m | 1m~30m |
60S | 2.0S~60S | 60m | 2m~60S |
180S | 3m | 180m | 0.1h~10h |
120S | 5.0S~120S | 120m | 0.1h~10h |
Dimension.Bottom View

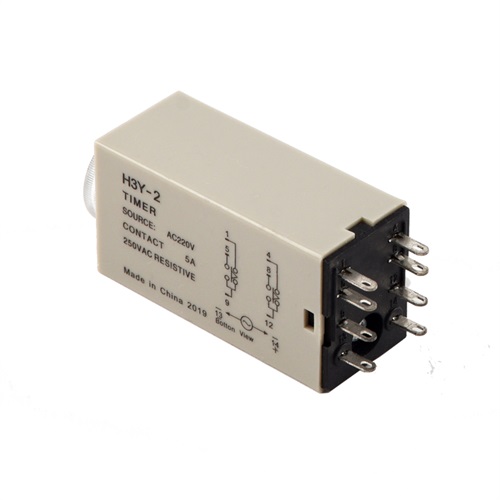

Product description
Working power: | DC24V;AC24V,220V,380V |
Delay range: | 1s,6s,10s,30s,60s,120s, |
Repeat error: | ≤1% |
Operating mode: | Power-on delay |
Contact shape: | ST6P-2, H3Y-2; two sets of delay contacts |
Contact rating: | 3A AC220V (resistive) |
Dimensions: | 76×50×106mm |
Installation method: | 35mm rail |
Specification
Voltage | DC 12V-48V AC 12V-380V 50/60Hz |
Power Expend | DC 1.0W AC1.0VA |
Contact Output | 2Z 5A220VAC 4Z 3A220VAC |
Insulation Resistance | DC500V 100MΩ |
Dielectric Strength | BCC1500VAC BOC1000VAC |
Operating Temperature | -10℃~50℃ |
Huminity | 35%~85% |
Life | Mech:10^7 Elec:10^3 |
Weight | ≈50g |
Time Range
Rated Time | Time Range | Rated Time | Time Range |
0.5S | 0.05S~0.5S | 0.5m | 0.05~0.5m |
1S | 0.1S~1S | 1m | 0.1m~1m |
5S | 0.5S~5S | 5m | 0.5m~5m |
10S | 0.5S~10S | 10m | 0.5m~10m |
30S | 1.0S~30S | 30m | 1m~30m |
60S | 2.0S~60S | 60m | 2m~60S |
180S | 3m | 180m | 0.1h~10h |
120S | 5.0S~120S | 120m | 0.1h~10h |
Dimension.Bottom View
Product description
Working power: | DC24V;AC24V,220V,380V |
Delay range: | 1s,6s,10s,30s,60s,120s, |
Repeat error: | ≤1% |
Operating mode: | Power-on delay |
Contact shape: | ST6P-2, H3Y-2; two sets of delay contacts |
Contact rating: | 3A AC220V (resistive) |
Dimensions: | 76×50×106mm |
Installation method: | 35mm rail |
