Application

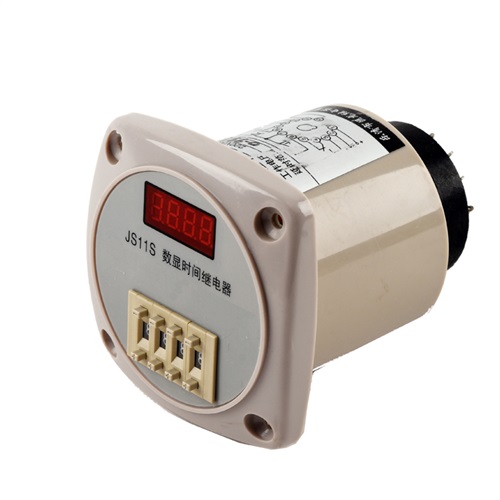

JS11S Electronic LCD Programmable timer switch relay is the most important component in automatic system ,it has small of volume ,light of weight, high precision ,long life ,etc characteristic, it is used in AC50HZ 380V and below power line and DC 24V and below power line.
JS11S Electronic LCD Programmable timer switch relay complies with GB14048.5.
Normal working condition and mounting condition
Altitude: no exceeding 2000m
Mounting type: Vertical or horizontal.
Display usage | Digital diaplay |
Rated volatge | AC380V AC220V 50HZ;DC24V |
Action mode | on-delay |
Delay range | 9.9s,99s,99.99s,999.9s,9m59s,9.9m,99m,99m59s,99.9s,999s,999m,9h59m,99h59m, 99.9h,9999s,9999m,0,01s~99h99m |
Repetitive error | ≤1%(delay range≤1S,≤50ms) |
Contact number | STSP |
Contact capacity | 3A AC220V(Resistance) |
Dimension | 95x95x122mm |
Hole size | 4-Ø5/70x70mmØ81mm |
Installment mode | Panel |
Display usage | Digital diaplay |
Rated volatge | AC380V AC220V 50HZ;DC24V |
Action mode | on-delay |
Delay range | 9.9s,99s,99.99s,999.9s,9m59s,9.9m,99m,99m59s,99.9s,999s,999m,9h59m,99h59m, 99.9h,9999s,9999m,0,01s~99h99m |
Repetitive error | ≤1%(delay range≤1S,≤50ms) |
Contact number | STSP |
Contact capacity | 3A AC220V(Resistance) |
Dimension | 95x95x122mm |
Hole size | 4-Ø5/70x70mmØ81mm |
Installment mode | Panel |
