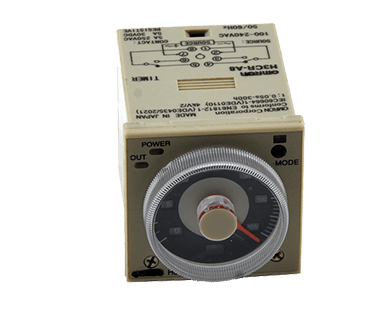

    H3CR-A8 time relay

    Place of Origin:Zhejiang, China

    Brand Name:JUZLONE

    Model Number:H3CR-A8

    Theory:Time Relay

    Usage:General Purpose, Electric Industry

    Size:Miniature

    Protect Feature:Sealed

    Contact Load:Low Power

    OEM:OEM Service

    Model:H3CR-A8

    Warranty:1 Year

    Product name:H3CR-A8 delay timer

    Brand:OEM ODM

    Color:Choice

    PAYMENT:Trade Assurance TT \ TT \ Transferwise

    MOQ:50PCS

    P/N: H3CR-A AC24-48/DC12-48


    Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 300 Hrs Delay 5A @ 250VAC Socketable

     The H3CR series Multi-range analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control.



    Description

    - Multi-range analogue timer
    - Time setting range of 0.5s to 100h
    - Wide operating voltage range in a single unit
    - Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
    - 8 field-selectable output modes for various applications

    -14 field-selectable time range, from 0.2 second to 300 hour

    - Includes 2C output contacts, instantaneous output contact, flicker and interval modes

    - Timing LED Indicates Output Relay Status


    Technical Data

    Type

    H3CR

    Operating voltage

    100-240VAC / 100-125VDC

    24-48VDC / 12-48VDC

    DC(V):12,24

    AC(V):110,220

    Allowable operating voltage range

    85~110% of rated operating voltage

    Rated frequency

    50/60Hz

    Indicator operating

    Time operating flicker

    Contact rating

    250VAC 5A (resistive load)

    Life

    Mechanical               5×107times

    Electrical                  1×105times

    Accuracy

    Repeat error             ±1.0%max

    Setting error              ±5.0%max

    Voltage error             ±1.0%max

    Temperature error    ±2.0%max

    Reset time

    Max 0.5sec

    Insulation resistance

    100MΩ(DC 500V)min

    Dielectric strength

    1500VAC

    Power consumption

    100-240VAC:1VA / 12VDC,24-240VDC:1.5W

    Ambient temperature

     -10℃~+55℃

    Ambient humidity

    35~85%RH

    Weight

    100g

    Dimensions

    48H×48W×81.6D



    Hot Tags: H3CR-A8 time relay, manufacturers, suppliers, factory, Customized

    Technical Data

    Type

    H3CR

    Operating voltage

    100-240VAC / 100-125VDC

    24-48VDC / 12-48VDC

    DC(V):12,24

    AC(V):110,220

    Allowable operating voltage range

    85~110% of rated operating voltage

    Rated frequency

    50/60Hz

    Indicator operating

    Time operating flicker

    Contact rating

    250VAC 5A (resistive load)

    Life

    Mechanical               5×107times

    Electrical                  1×105times

    Accuracy

    Repeat error             ±1.0%max

    Setting error              ±5.0%max

    Voltage error             ±1.0%max

    Temperature error    ±2.0%max

    Reset time

    Max 0.5sec

    Insulation resistance

    100MΩ(DC 500V)min

    Dielectric strength

    1500VAC

    Power consumption

    100-240VAC:1VA / 12VDC,24-240VDC:1.5W

    Ambient temperature

     -10℃~+55℃

    Ambient humidity

    35~85%RH

    Weight

    100g

    Dimensions

    48H×48W×81.6D
