Warranty:1 year, 1 Year
Customized support:OEM, ODM, OBM
Place of Origin:Zhejiang, China
Brand Name:JUZLONE
Model Number:JL-400
Usage:Electric Industry
OEM:OEM Service
Model:JL-400
Product name:JL-400 Digital display intelligent
Color:Choice
PAYMENT:Trade Assurance TT \ TT \ Transferwise
MOQ:50PCS
Certification:Reach, IECEE

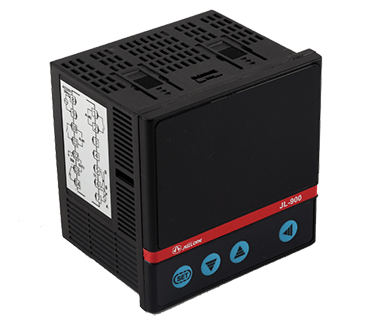

The temperature controller is an integrated intelligent temperature control instrument. It adopts a fully digital integrated design, with programmable temperature curve or fixed-point constant temperature control, multiple PID adjustment, output power limit curve programming, manual/automatic switching, soft start, and alarm. Switch output, real-time data query, communication with computer and other functions, the digital temperature meter and ZK thyristor voltage regulator are combined into one, which integrates temperature measurement, adjustment and drive. The meter directly outputs the thyristor trigger signal, which can drive each Thyristor-like loads.
Model | JL-100 | JL-400 | JL-700 | JL-900 |
Panel size | 50*50mm | 96*48mm | 72*72mm | 96*96mm |
Hole Size | 45*45mm | 90*45mm | 66*66mm | 92*92mm |
Dimensions | 50*50*87mm | 96*48*83mm | 72*72*83mm | 96*96*83mm |
output signal | The default is K type adjusted, J/R/S/B/E/N/T/PT100/CU50 | |||
control method | PID control, Two-position control | |||
Alarm method | A group of alarm relay electric shock output | |||
Power | AC180-240V 50/60HZ | |||
Output | DC24V | |||
Output method | Relay and SSR solid state relay dual output | |||
Model | JL-100 | JL-400 | JL-700 | JL-900 |
Panel size | 50*50mm | 96*48mm | 72*72mm | 96*96mm |
Hole Size | 45*45mm | 90*45mm | 66*66mm | 92*92mm |
Dimensions | 50*50*87mm | 96*48*83mm | 72*72*83mm | 96*96*83mm |
output signal | The default is K type adjusted, J/R/S/B/E/N/T/PT100/CU50 | |||
control method | PID control, Two-position control | |||
Alarm method | A group of alarm relay electric shock output | |||
Power | AC180-240V 50/60HZ | |||
Output | DC24V | |||
Output method | Relay and SSR solid state relay dual output | |||
