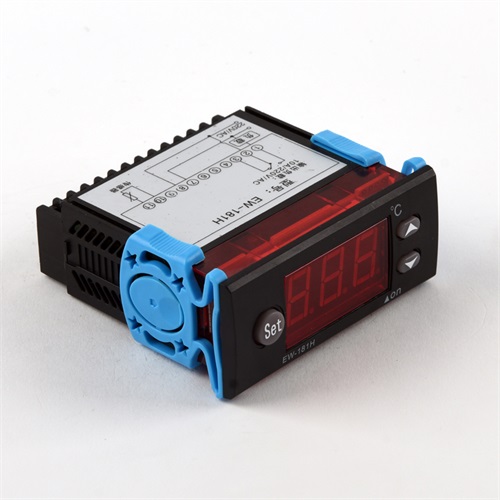

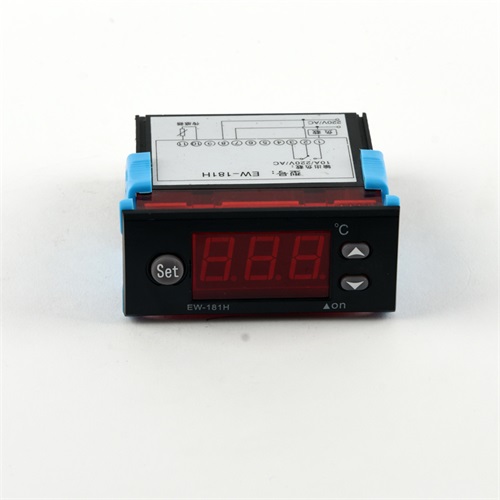

    Digital temperature controller EW-181H  Electronic thermostat

    This product capable of cool/warm mode switching.lowest temperature limit,peak temperature limit, de play protection of compressor.temperature correction,temperature return difference,memory function upon power failure,and failure self check.



    Application :

    Applicable to the control of seafood chillers, fish pond equipment, and water coolers.

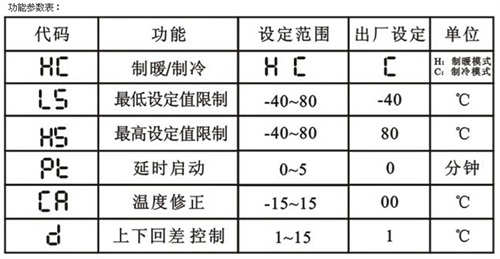

    Product Features

    (1)Cool/warm mode switching

    (2)Lowest temperature limit

    (3)Peak temperature limit

    (4)Delayed protection of compressor

    (5)Temperature correction

    (6)Temperature return difference

    (7)Memory function upon power failure

    (8)Failure self-check



    Product Specification :

    Overall Dimension: 76(L)*35(H)*76(D)mm

    Hole size: 71(L)*29(W)

    SPECIFICATIONS



    Specifications

    Overall Dimension

    76(L)*35(H)*76(D)mm

    Hole size

    71(L)*29(W)mm



    Technical Specifications

    Operating voltage

    AC220V ±10% 50HZ/60HZ

    Output Load

    Compressor relay 10A/220V/AC

    Power Consumption

    ≤3W


    Working environment

    -10℃~50℃ R H≤90%

    Input signal

    one NTC-sensor input.20k×1.5m

    Control Range

    -45℃~80℃


    Resolving Power:1℃

    Accuracy:±1℃
