    CHB702

    Temperature controller for heating equipment

    CHB Serial PID Intelligent Temperature Controller adopts computer chip as the main
    control unit as well as many advanced techniques such as multiple digital filter circuit, PID auto-tuning etc. It has advantages of high measurement accuracy, correct and stable temperature control, strong anti-interference and simple operation, and is widely used in chemical, ceramic, light, metallurgical, petrochemical and plastic industries. It is also an upgraded product of ordinary
    analogue meters.

    Measurement accuracy: ±0.5%F±1

    Sampling rate: 2 times / sec

    Adjustment mode: Intelligent PID regulation, according to different PID parameters can be composed of P (binary), PI, PD, PID regulation

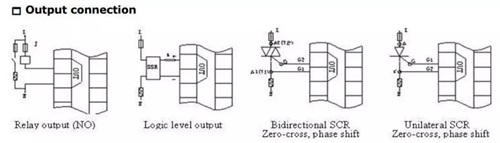

    Output mode(customizable):crelay contact AC220V / 5A, level signal 12V /20mA, zero crossing trigger thyristor, analog quantity can be customized

    Alarm mode: upper limit (or upper deviation), lower limit (or lower deviation)
    With manual control function, and manual automatic undisturbed switching

    Power supply(customizable): 220 VAC, ± 10% / 50-60Hz

    Power consumption: ≤ 5W

    Ambient temperature: 0-50℃



    Dimensions:

    72mm*72mm*81mm

    Accuracy:

    0.5

    Input:

    K/E/J/R/S/B/N/T/PT100/CU500 adjustable

    Output:

    relay,SSR

    Alram:

    ALM1

    Control mode:

    PID,ON/OFF

    Power Supply:

    180V-220V AC 50hz

    Working Environment

    Temperature 0°C~50°C RH:35%~85%

    Weight:

    220g




    Hot Tags: CHB702 , manufacturers, suppliers, factory, Customized

    Dimensions:

    72mm*72mm*81mm

    Accuracy:

    0.5

    Input:

    K/E/J/R/S/B/N/T/PT100/CU500 adjustable

    Output:

    relay,SSR

    Alram:

    ALM1

    Control mode:

    PID,ON/OFF

    Power Supply:

    180V-220V AC 50hz

    Working Environment

    Temperature 0°C~50°C RH:35%~85%

    Weight:

    220g
