Specification and Feature:
adopt LED display , it has high precision and reliability ,6 pieces of LED display
Outline dimension:56*40*88
Contact amount:1 group
Contact capacity:250VAC 5A (resistance)
Contact electric life:10*100000
Operation temperature:-5~+40
Input signal:Contact or inductance sensor input
Rated voltage: AC:50HZ 220V 380V DC:24V
Counting range:1-999999
Counting mode:Up counting
Fixing mode:flush mounting

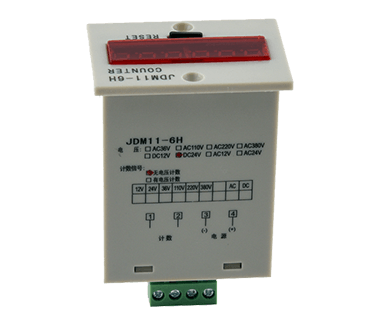

JDM11-6H Digital counter
Specification and Feature:
adopt LED display , it has high precision and reliability ,6 pieces of LED display
Outline dimension:56*40*88
Contact amount:1 group
Contact capacity:250VAC 5A (resistance)
Contact electric life:10*100000
Operation temperature:-5~+40
Input signal:Contact or inductance sensor input
Rated voltage: AC:50HZ 220V 380V DC:24V
Counting range:1-999999
Counting mode:Up counting
Fixing mode:flush mounting
| JDM11-6H |
Product name | Accumulative Counter/Accumulative Counting Relay/ Counting Relay/Counter Relay |
Working power | DC24V; AC24V, 220V |
Working mode | addition count, 6-bit LED display |
Count range | 1-999999 |
Input signal | Contact signal |
Electrical level signal | |
No-power memory | 10 years |
Overall Dimension | 40*56*88mm |
Mounting Dimension | 26*51mm |
Installation | Panel mounting |
| JDM11-6H |
Product name | Accumulative Counter/Accumulative Counting Relay/ Counting Relay/Counter Relay |
Working power | DC24V; AC24V, 220V |
Working mode | addition count, 6-bit LED display |
Count range | 1-999999 |
Input signal | Contact signal |
Electrical level signal | |
No-power memory | 10 years |
Overall Dimension | 40*56*88mm |
Mounting Dimension | 26*51mm |
Installation | Panel mounting |
